ATC Professional SCS120iW Pro (In-Wall)

Productbeschrijving

The new 15" design is ideally paired with SCM110/150/200/300 monitors although it also pairs well with smaller models, if certain situations demand increased bass extension and/or headroom than the 12" SCS70 Pro offers.

As with the SCS70 Pro, two versions of the sub are available, one for use 'freestanding' and one for in-wall installation.

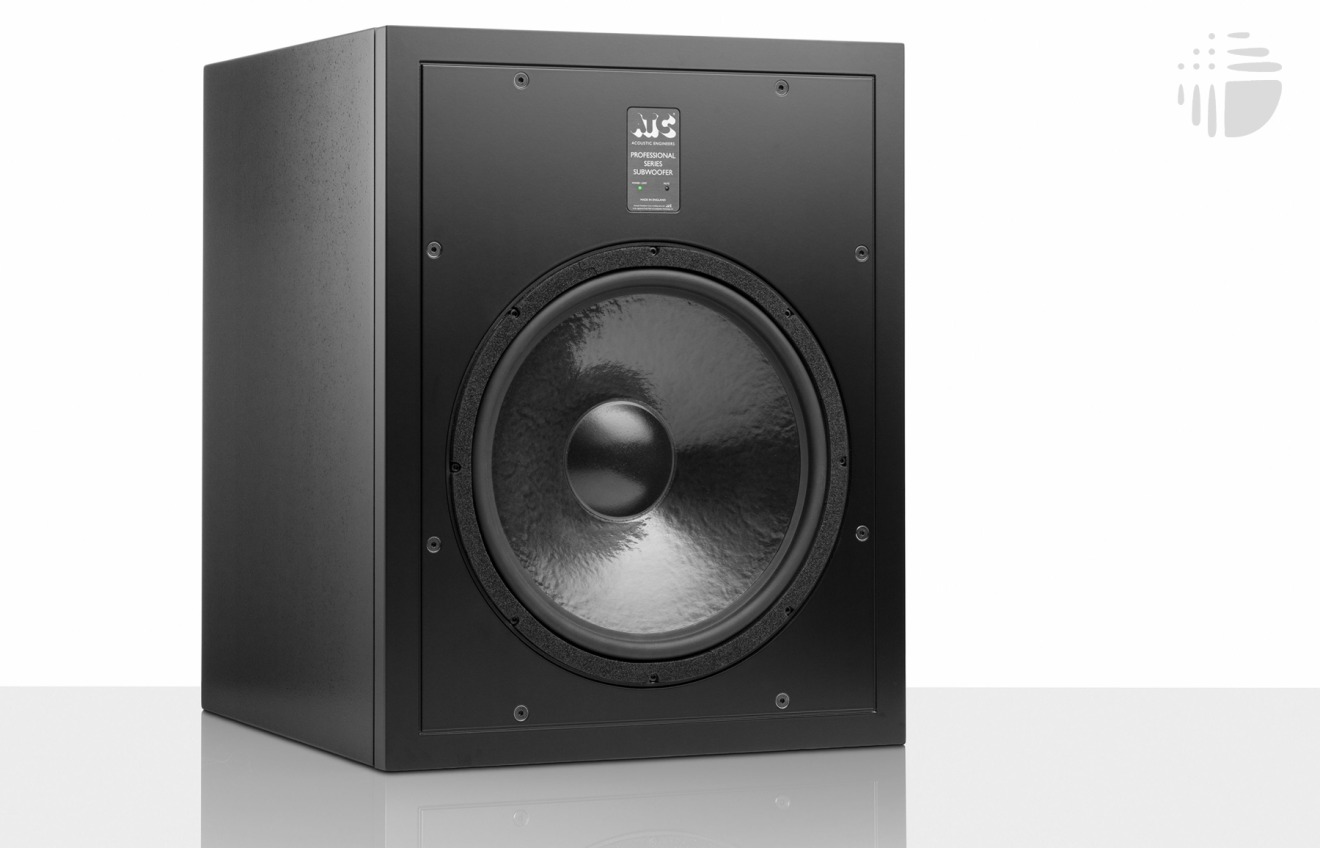

The SCS120 Pro is designed for use 'freestanding' and features a radius baffle and rear mounted amplifier. The amp is the same as used in the SCS70 Pro 12" but the 15" bass driver is an all-new design and is loaded in a 120 litre sealed cabinet. The larger driver and cabinet result in 3dB greater efficiency (headroom) and an extended bass response.

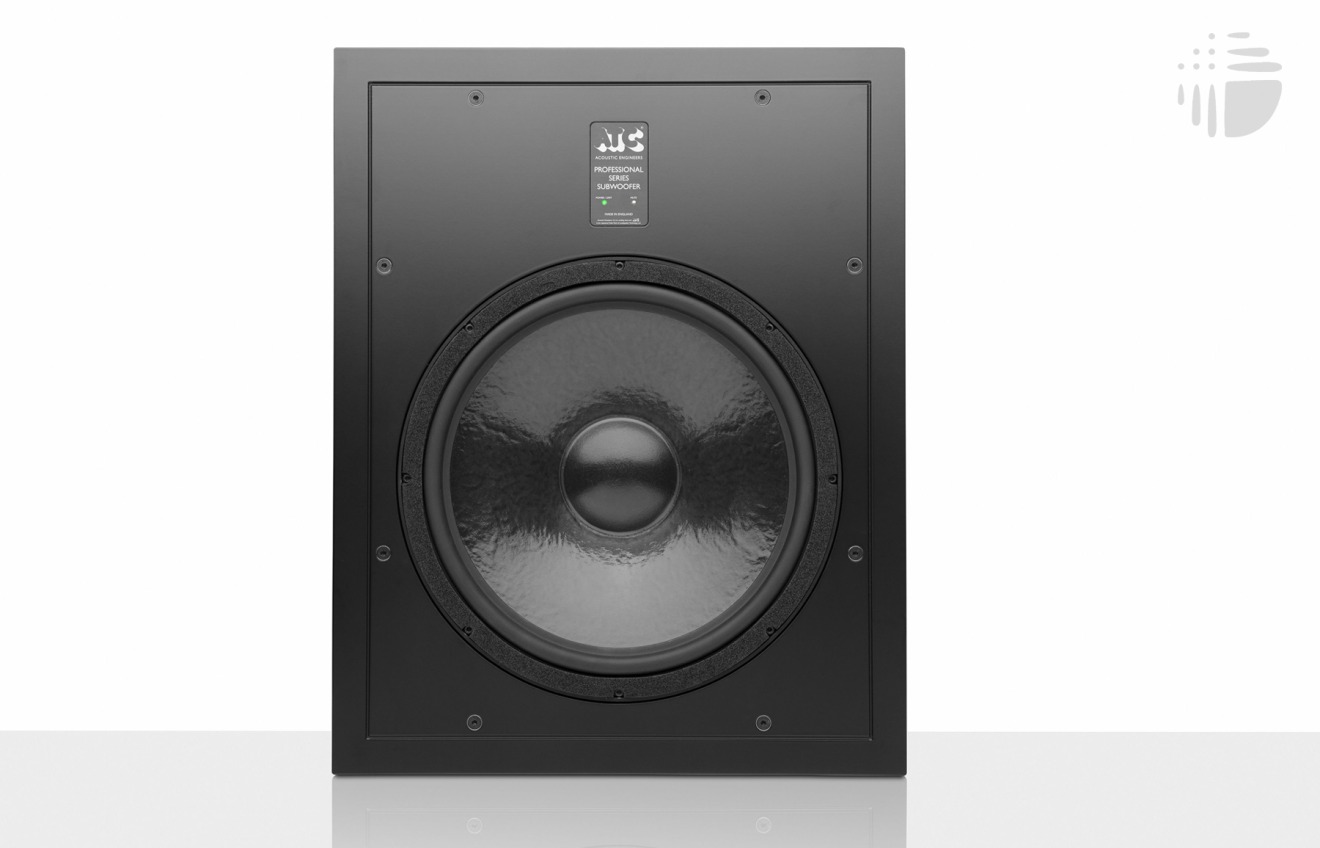

The SCS120iW Pro is optimised for flush/in-wall mounting and features a square edge baffle and is supplied with the 19"/7U R1-300 amp

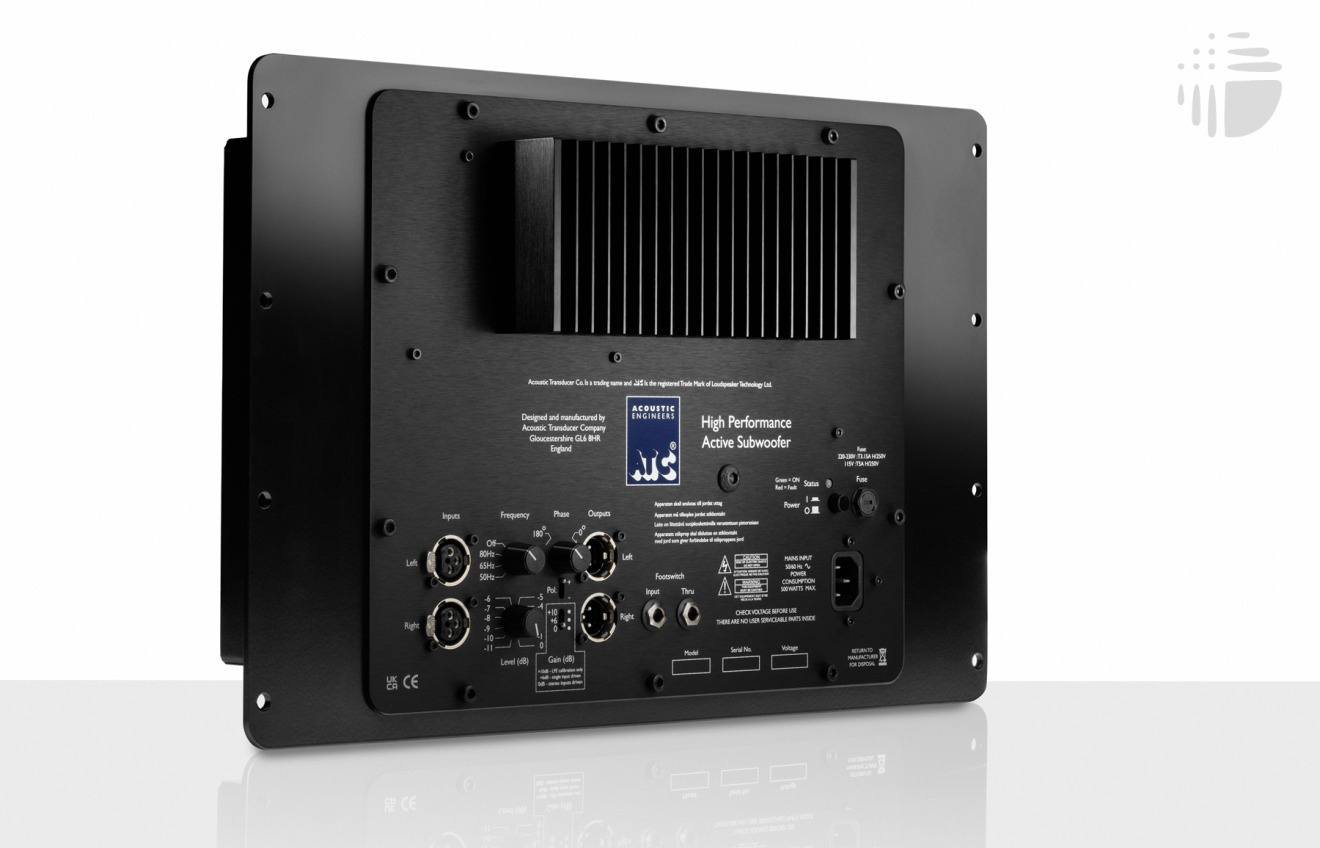

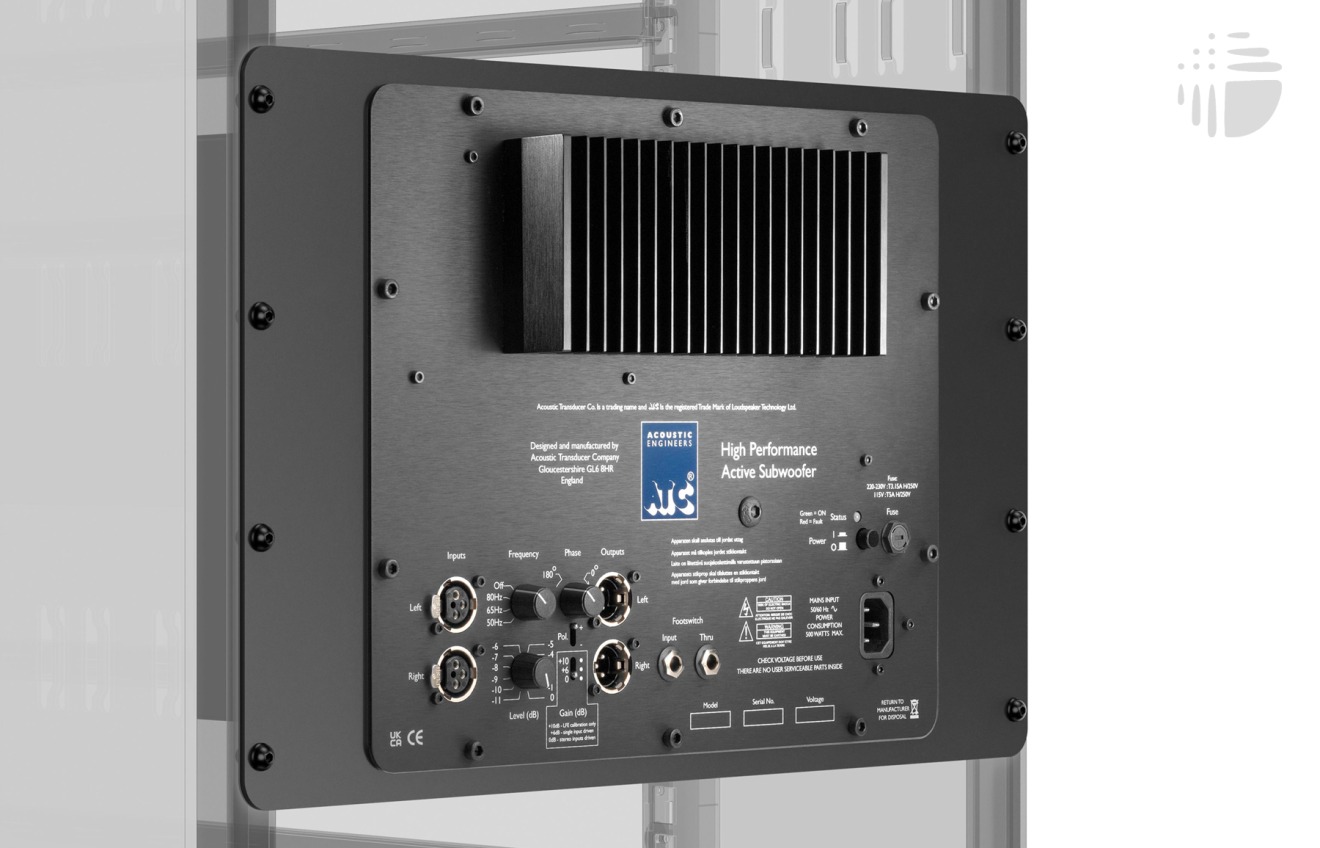

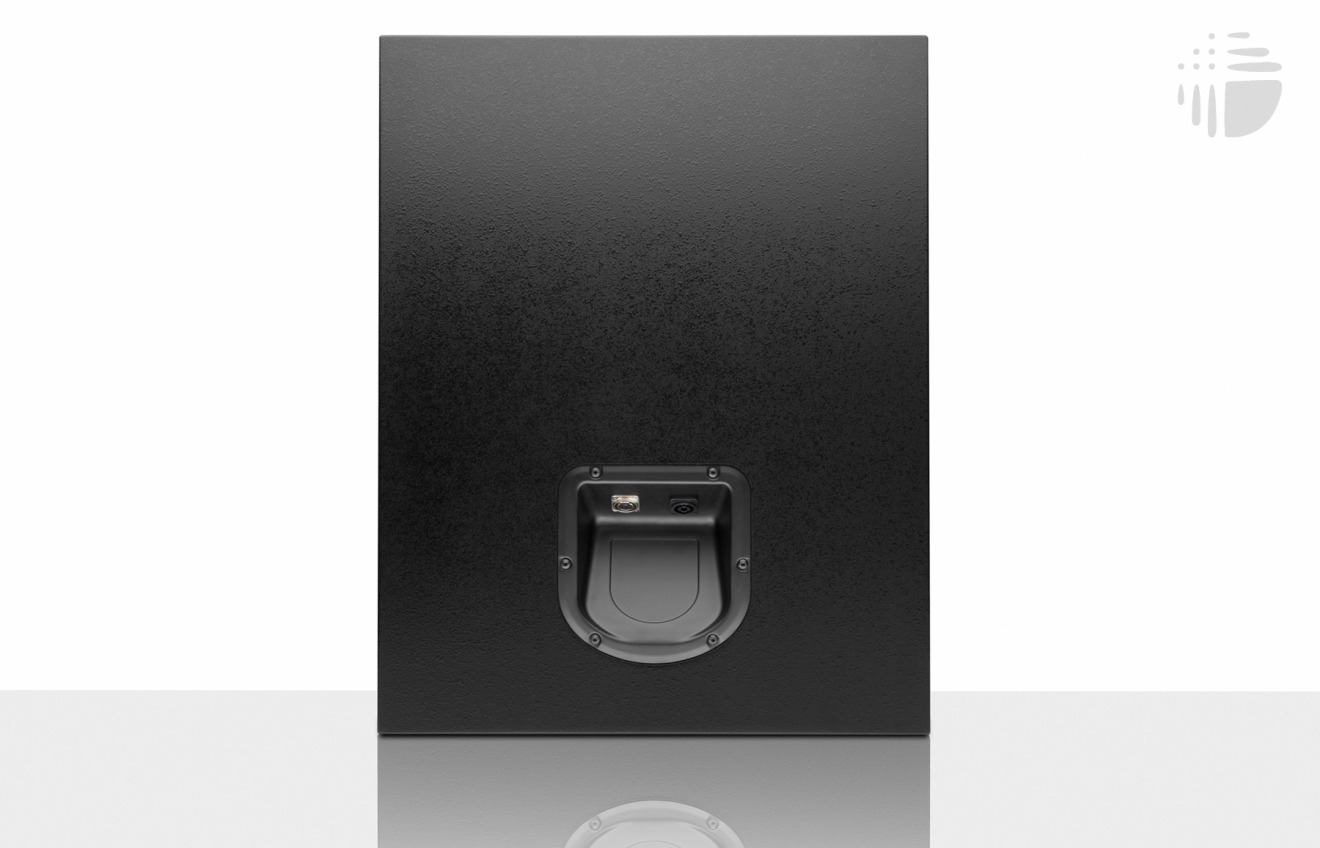

The R1-300 Pro remote amp can be mounted in a wall within the control room or in a 19" rack. Connection between the sub and remote amp is via NL4 and 5-pin XLR.

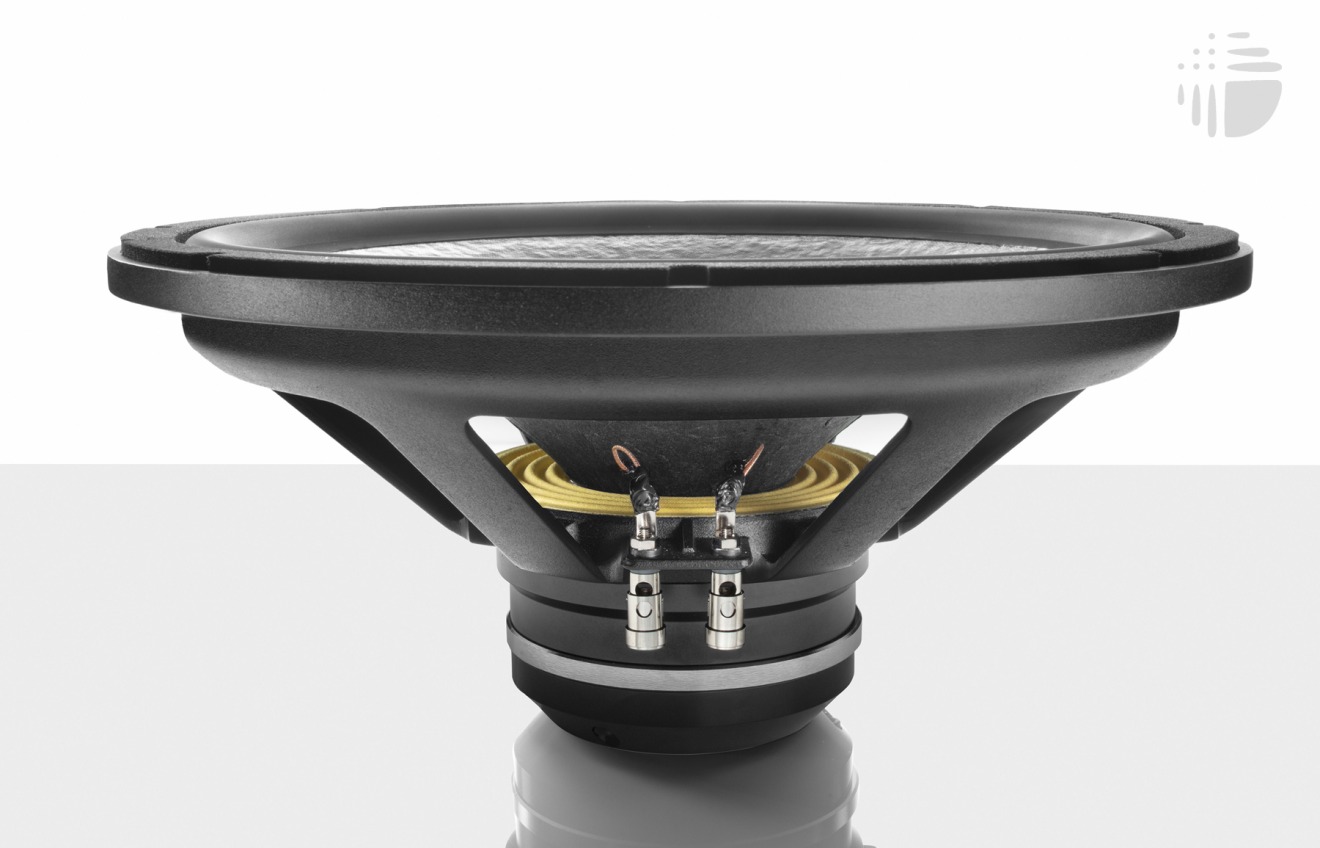

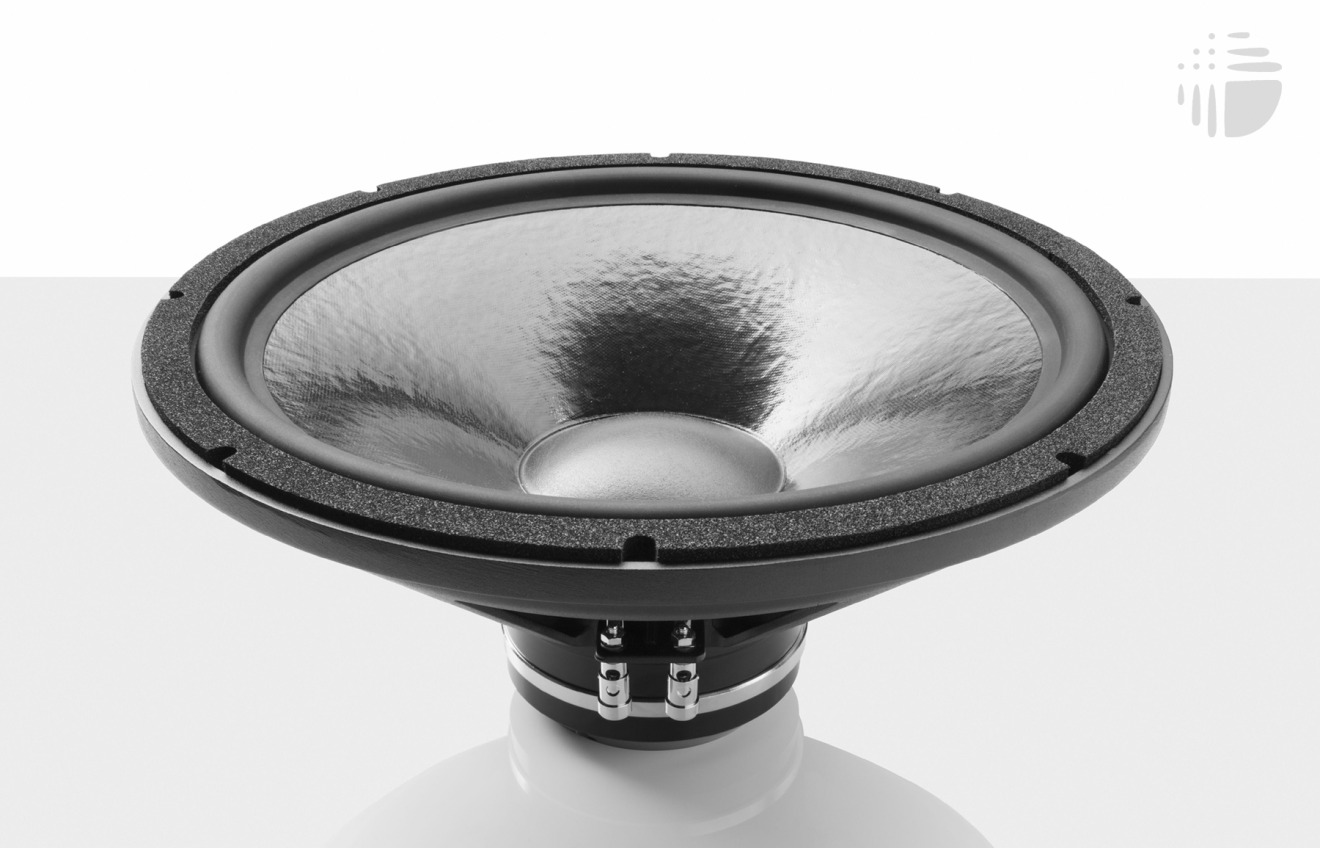

At the heart of the subwoofer is a new 15" driver featuring a high-power neodymium motor assembly and highly linear suspension, optimised for low bass reproduction. The larger driver results in 3dB greater efficiency and improves the low frequency cut-off to 20Hz (-6dB) vs the 12" SCS70 Pro. The larger driver also delivers cleaner low frequency output due to reduced distortion over it's full operating band.

Both the SCS120 and SCS120iW Pro use a cabinet that matches the width of the SCM150A and SCM150AiW Pro, so when combined, the system visuals are optimised. In addiition, the height of the sub cabinet has been designed to position the partnering SCM150 optimally for the majority of clients/studios.

O v e r v i ew
High performance sealed box design using 15/375mm ATC proprietary sub driver.
Ideal partner to the SCM45A/SCM50A/SCM100A/SCM110A/SCM150A/SCM200A/SCM300A Pro monitors.
Suitable for use in stereo, surround and immersive audio applications.
Rack mount 300W convention cooled discrete MOSFET class A/B amp.
2 x balanced XLR inputs
2 x balanced XLR outputs (un-filtered/processed).
User adjustable gain, low pass frequency, polarity and phase settings.
Remote sub muting via latching footswitch*
Free standing variant also available . the SCS120 Pro.
* Footswitch supplied separately, latching type, .1/4"/6.35mm jack connection.
"
A c o u s t i c s p e c i f i c a t i o n s
Drive Unit . Bass: 1 x ATC SS75-375SC 8 Ohm.
Low Frequency Cut-off: 20Hz (-6dB, half space, low pass filter set at 80Hz).
Low Pass Filters: 50Hz, 65Hz, 80Hz, 320Hz. (-6dB, 4th order Linkwitz Riley).
MaxSPL: 113dB continuous, 119dB peak (IEC Weighted Pink Noise, measured at 1m, half space, low pass filter set at 80Hz).
Sensitivity: 85dBC, ref. -17dBu (single channel driven, Gain +6dB, Level 0dB, pink noise, low pass filter set at 80Hz).

E l e c t r o n i c s p e c i f i c a t i o n s
Balanced Input: 2 x Female XLR, pin 2 hot.
Input Impedance: Approx. 20k Ohm (differential).
Input CMRR: 90dB at 200Hz.
Input Sensitivity: 1.12Vrms for full power (single channel driven, Gain 0dB, Level 0dB).
Gain Control: 0, +6dB, +10dB.
Level Control: 0dB -11dB in 1dB steps. Total range 21dB with use of Gain switch.
Phase Control: 0-180‹ ref. Input.
Polarity Control: In-phase/Out-of-phase ref. Input.
Low Pass Filters: 4th Order Linkwitz Riley.
Output Impedance: Approx. 100 Ohm (differential).
Amplifier type: Grounded Source MOSFET based Class A-B, convection cooled.
Output Power: 300W in to 8 Ohm
THD+N: <0.003%/-90dB, at 100Hz, 300W into 8Ħ over 90kHz bandwidth.
Frequency Response: <2Hz (-3dB) . 320Hz (-6dB, set by panel-controlled LP filter).
Limiter: ATC Active FET Momentary Gain Reduction, active limiter indicated on front panel.
Electronic Amp Protection: Amplifier D.C Offset and over-temperature (both indicated on rear panel).
Power Consumption: Idle 16W/60VA, 1/8th Power 170W/230VA, Full Power 500W / 600VA.
Mains Input: 220-230V, 115V . Factory set. Please observe panel markings and labels.
Heat Output: Idle 47.8 BTU/hr, 1/8th Power 458.9 BTU/hr, Full Power 682.4 BTU/hr.
Additional: Mute via 1/4"/ 6.35mm Jack socket, controlled via latching footswitch.
