Grace Design m701 8x8 USB

Productbeschrijving

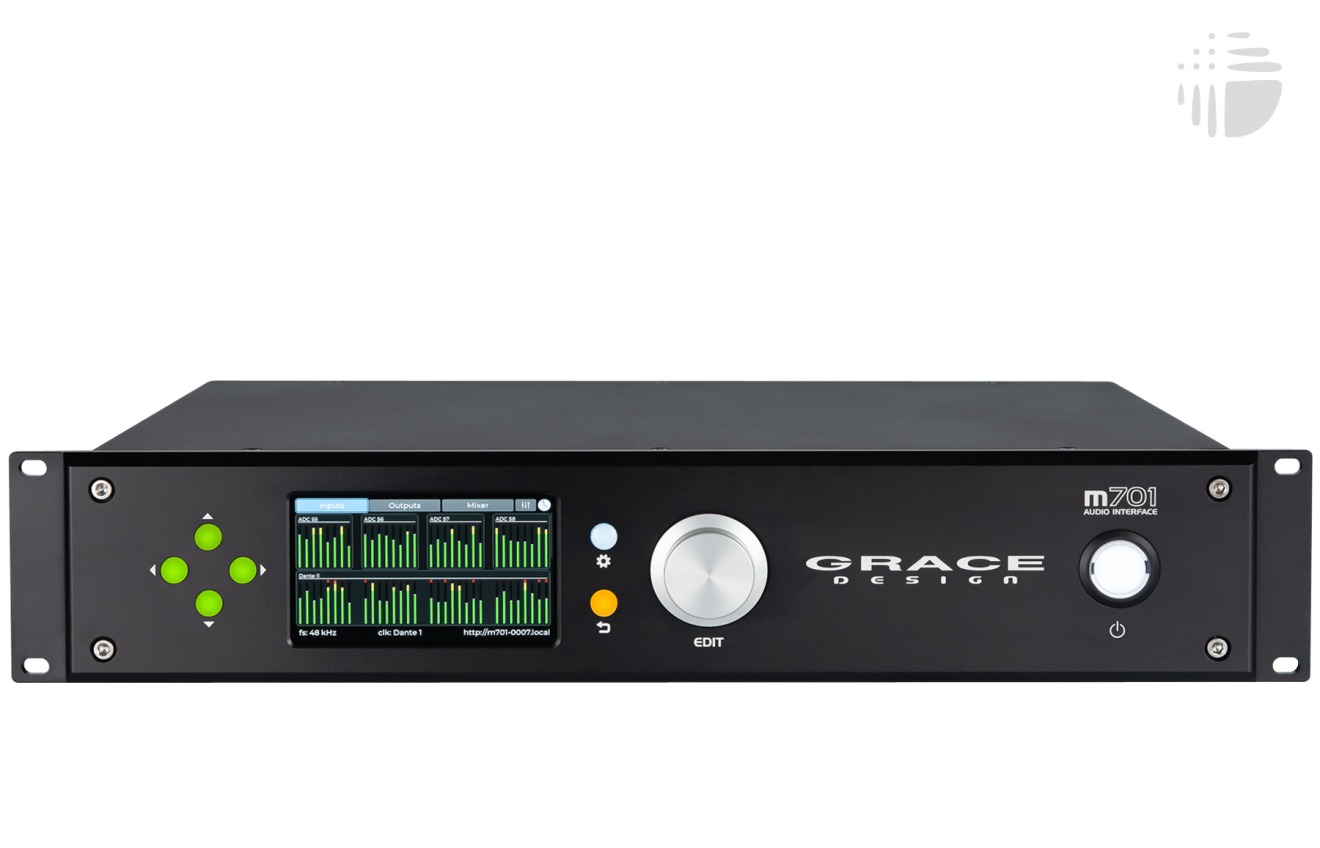

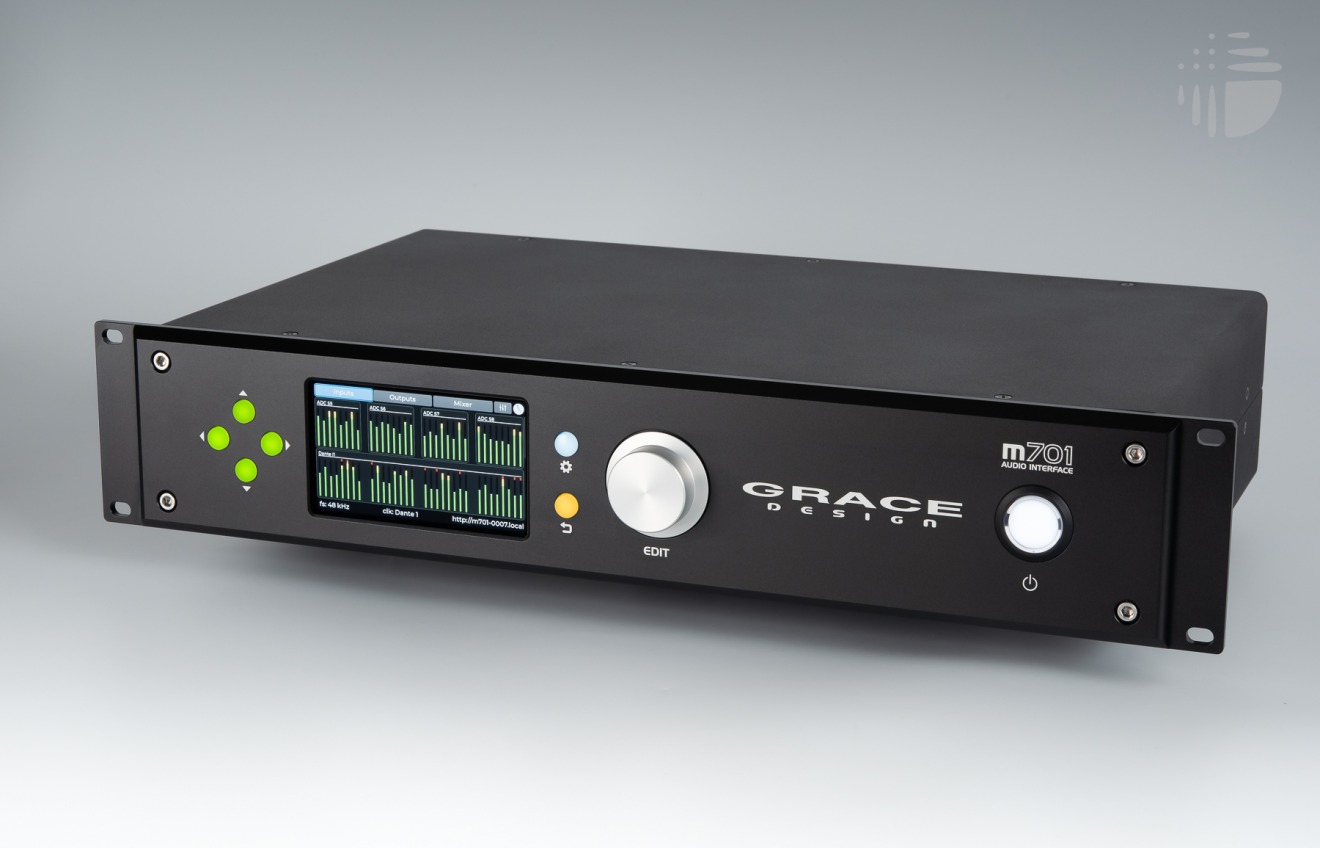

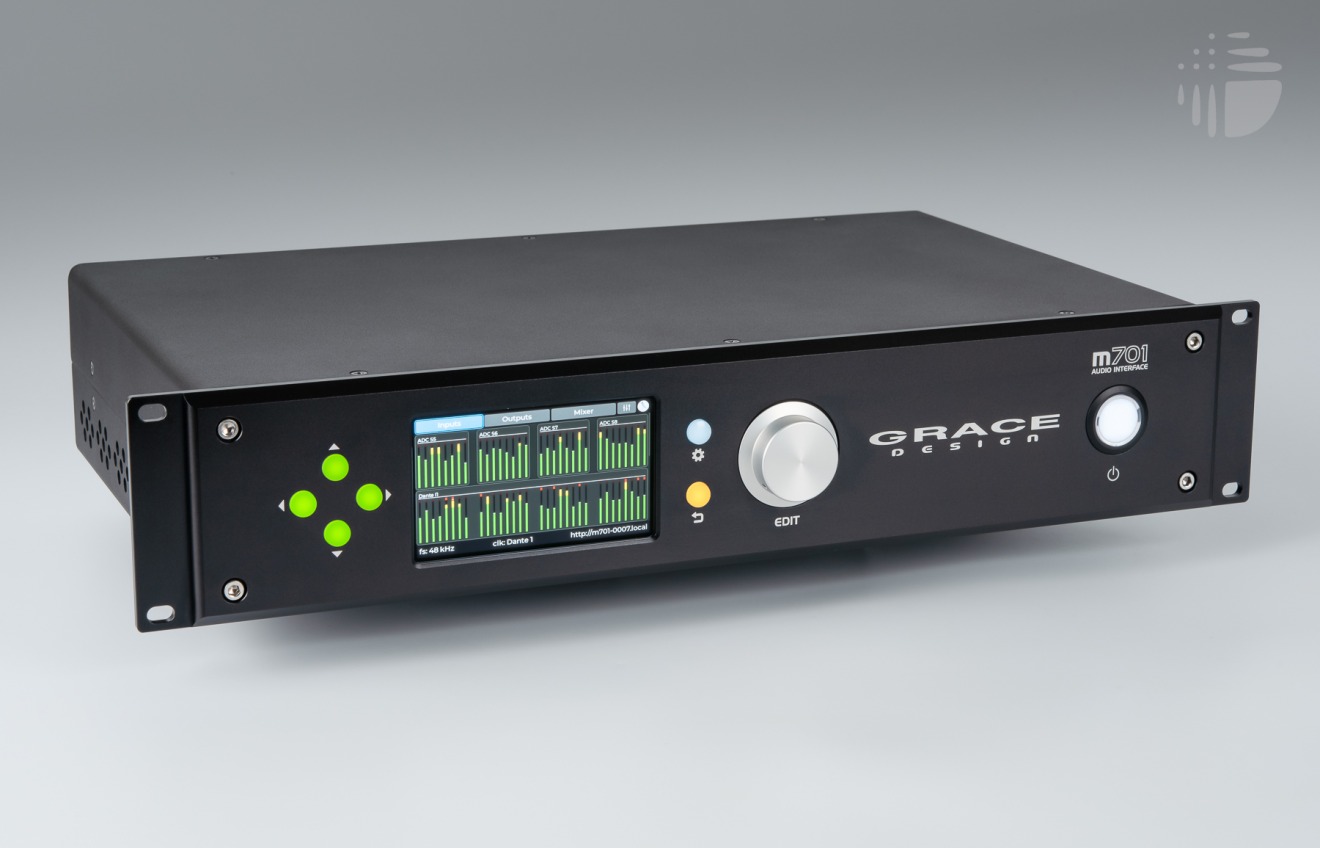

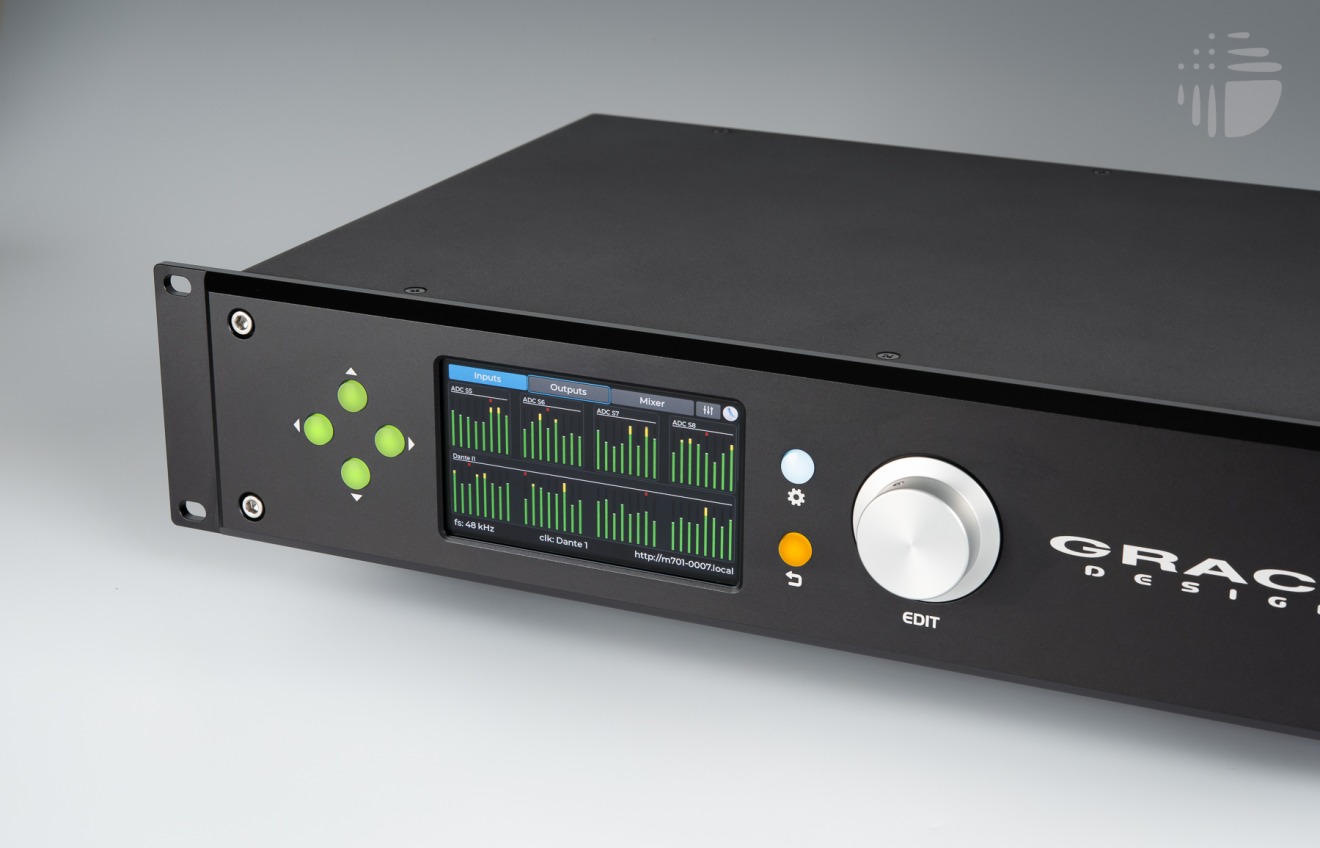

The Grace Design m701 is a modular, high-channel count audio interface designed for all types of recording facilities. As our first foray into a complete interface design, the goal was to provide our very highest quality AD/DA convertion integrated into a powerful, configurable platform. The m701’s modular design allows a wide array of configurations based on your needs. From simple in the box systems to large hybrid studios, the m701 is ready.
Modern Conversion

We have been building AD/DA conversion into our mic preamp and monitoring products since the early 2000’s. During this time, digital audio converter chips have achieved a very mature state. Today it is hard to find a bad converter chip. But building a complete audio product around any converter still requires careful and expert audio design skills, which we have been honing for decades. Analog input and output circuitry, power supply, and clock design matter more than ever, and are what differentiates a great sounding I/O device from the rest. The m701 furthers our legacy of open and musical sounding audio hardware with a remarkably powerful studio I/O tool.
Massive I/O Capability

Individual 8 channel ADC and DAC modules can be installed in any combination into the 8 available card slots, allowing for a wide array of I/O combinations based on the customer’s need. Digital I/O options include: two 32 channel module slots for Digilink, Dante, USB2 (upcoming), Ravenna/ AES67/ ST2110 and other future formats. A third option module slot is provided for expanding m701 digital I/O capabilities, such as an additional 24 channel AES3 I/O module, Word Clock distribution module, or future studio monitoring functionality. Included baseboard digital I/O connections are 8ch AES, 8ch ADAT and 2ch S/PDIF. Also, optional Grace Design high-quality 4ch microphone preamplifier modules can mounted in any of the 8 card slots.
